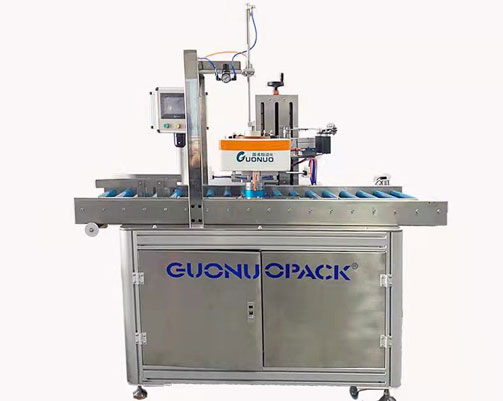

Automatic Foam Box Taper Machine

The automatic box taper machine(GN-GPZX-38)adopts an ingenious, concise, and high-strength structural design to make the machine reliable and suitable for continuous heavy load sealing in the production line.

GUONUOPACK

Automatic Box Taper Machine Technical Parameters


Machine ModelGN-GPZX-38/AGN-GPZX-38/BGN-GPZX-38/C
Suitable Box sizeL(440-700)L(270-480)L(200-360)
W(250-500)W(150-350)W(125-300)
H(190-390mm)H(150-350mm)H(120-270mm
Suitable Box Width10mm
Suitable Box Strength1000Kpa
Suitable Tape Width45-80mm
Tape Core Inner Diameter76mm
Air Pressure0.8Mpa
Sealing Speed6-10bpm
Power Supply220Vac / 50Hz   1.5KW
Gross Weight525kg468kg415kg
Dimension(L*W*H)1620×1200×1800mm1260×1100×1680mm1100×1000×1615mm


Video of Automatic Foam Box Taper Machine





Box Taper Machine Main Parts Configuration

Main Parts Configuration  (In case of replacement, the same grade shall prevail)
No.NameBrand
1PLCLEISAI

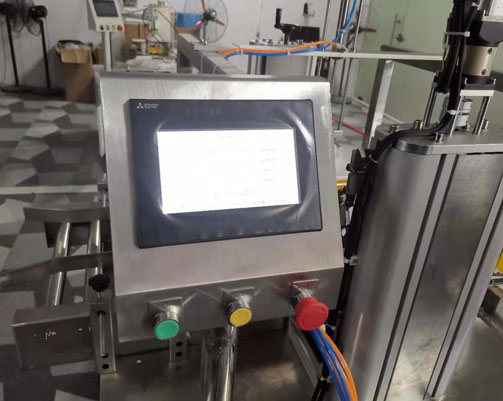

2Touch ScreenLEISAI
3Servo MotorLEISAI
4Air CylinderAirTAC
5Induction SwitchOMRON
6Solenoid ValveAirTAC
7BearingNSK
8Low Voltage ApparatusSCHNEIDER
9DC Power SupplyMINGWEI


Automatic Box Taper Machine Features

01

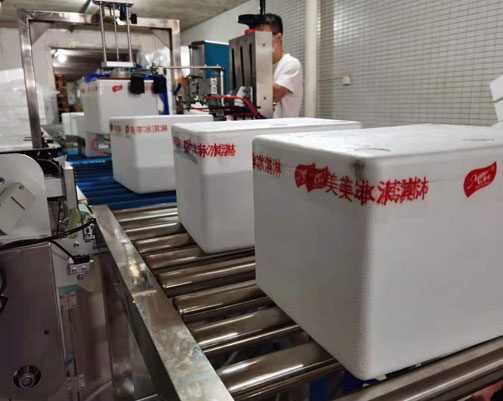

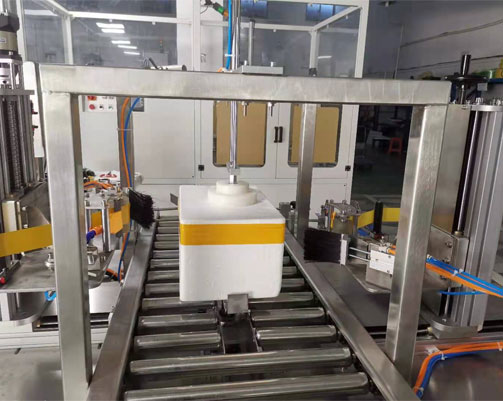

The rotary table winding method is adopted for tape sealing and the sealing is firm.

02

The box taper machine has the function of parameter storage and can store a variety of programs to facilitate the overall call.

03

Product replacement is convenient and fast. Fault self diagnosis function, fault display at a glance.

04

Like our lined carton packing machine, Guonuo's automatic box taper machine is also easy to operate, safe and reliable.
