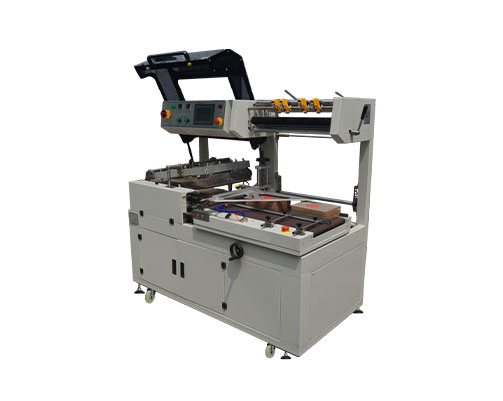

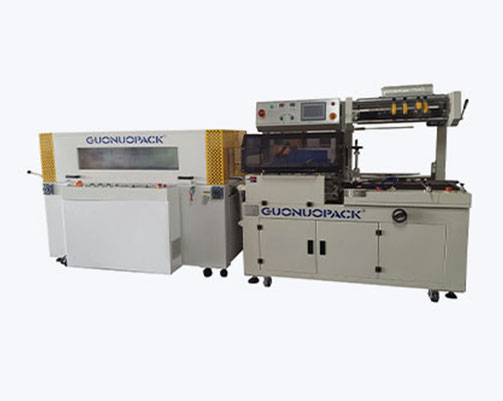

PE automatic L-type film sealer machine adopts PE half folded film. The structure is to drive the L-shaped sealing cutter to swing up and down through a fixed shaft, so as to achieve the purpose of sealing and cutting. This is an entry-level automatic sealing and cutting machine. This auto sealing film machine has various functions of other sealing and cutting machines. It can automatically send film, punch holes and seal and cut with film. Like other automatic L sealer for sale, this film sealer machine can seal and cut products with different widths and heights within a certain range.
| Model | GNL-4535 |
| Packing size | L+H≦400, W+H≦380 (H≦100)mm |
| Packing speed | 10-20pics/min |
| Net weight | 210kg |
| Power | 3KW |
| Power supply | 3 phase 380V 50/60Hz |
| Max current | 10A |
| Machine dimension | L1700*W820*H1580mm |
| NO. | Name | Qty | Brand |
| 01 | PLC | 1 | OMRON, JAPAN |
| 02 | Touch Screen | 1 | MCGS |
| 03 | Circuit Breaker | 10 | SCHNEIDER, FRANCE |
| 04 | Temperature Controller | 3 | OMRON, JAPAN |
| 05 | Ac Contactor | 2 | SCHNEIDER，FRANCE |
| 06 | Material Induction Switch | 2 | BONNER, USA |

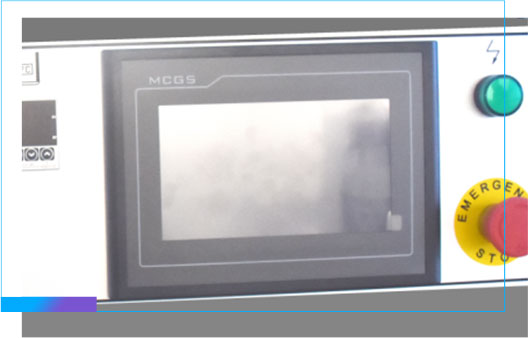

The parameter setting of this auto L sealer can be directly input on the touch screen, which is simple to operate.
The alarm screen can display every fault, which is convenient for rapid troubleshooting and solution.
The PLC programmable controller of this sealing film machine series is adopted to realize the electricity gas integration, so as to ensure convenient adjustment;
Photoelectric switch automatically detects whether the product is in place;
The specially designed v-piece sealing knife is adopted. The sealing line is firm and does not split. The external part of the knife body is plated with high temperature resistant Teflon, which does not adhere to the knife edge and has no peculiar smell;
The limit switch detects the place of sending film, which greatly reduces the loss of film;
The film feeding device is driven by the synchronous belt, which makes the operation of our film sealer machine more stable and accurate without noise.
