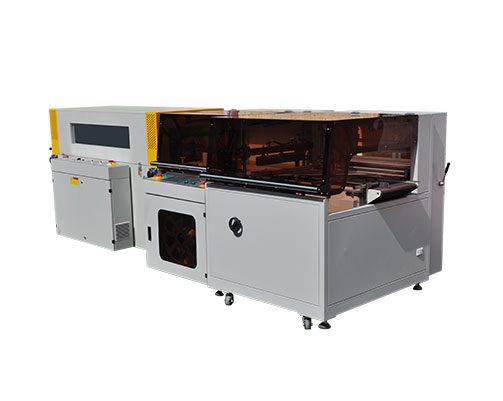

High Speed Pe Film Automatic Side Sealer

GNL-5545H is a fully automatic and unmanned high speed edge side sealing and cutting machine, which is widely used in the flow operation of mass production and packaging. The machine adopts "servo motor" to drive the sealing and cutting knife, with high working efficiency. The automatic film feeding and punching device, manually adjusted film guiding system and manually adjusted feeding and conveying platform are suitable for products with different widths and heights. Bs-400la model also has the function of tight connection, It is specially designed for packaging small products. When the size of the package changes, the adjustment is very simple without changing the mold and bag maker.

GUONUOPACK

High Speed Pe Film Automatic Side Sealer Technical Parameters

Machine ModelGNL-5545H(High Speed Side Sealer)
Packaging SizeL(no limit) W+H<450mm  H<150mm
Packaging Speed0-60 bpm
Height of Table820mm±50mm
Sealing knife Size≤500mm
Power Supply3Ф220V/380V    50Hz
Power3.5KW
Air Pressure6kg/cm3
Net Weight550kg
Machine DimensionL2100 X W1500 X H1300mm


High Speed Pe Film Automatic Side Sealer Electrical Configuration

No.NameBrand
1PLCOMRON, JAPAN
2Knife Servo MotorMITSUBISHI
3Sealing KnifeDupont(US)
4Brake MotorTAIBANG(TAIWAN, CHINA)
5Touch ScreenMCGS
6Circuit BreakerSCHNEIDER, FRANCE
7Temperature ControllerOMRON, JAPAN
8Ac ContactorSCHNEIDER,FRANCE
9Material Induction SwitchBONNER, USA
10Solid-state RelayOMRON, JAPAN
11Air CylinderSHAKO(TAIWAN, CHINA)
12Cylinder Solenoid ValveSHAKO(TAIWAN, CHINA)
13Air FilterSHAKO( TAIWAN, CHINA )
14Proximity SwitchSICK, GERMAN
15Conveyor BeltSIGLIN, GERMEN
16Power SwitchTIANYI, CHINA


Features of High Speed Pe Film Automatic Side Sealer

01

PLC is adopted to realize the machine Electricity Gas integration, convenient adjustment;

02

This automatic side sealing machine series adopts "servo motor" to drive the sealing and cutting knife, with high working efficiency and high speed;

03

Photoelectric switch automatically detects that the products are in place;

04

The cutter can be automatically moved and the upper and lower cutting seals can be switched;

05

It adopts the specially designed v-piece sealing knife. The sealing line of this Bopp side sealing machine is firm and does not split, and the external part of the knife body is plated with high temperature resistant Teflon, without mucous membrane, sticking to the knife edge and peculiar smell;

06

The limit switch controls the film feeding, which greatly reduces the loss of the film;

07

The film feeding device is driven by the synchronous belt, and the operation is more stable and accurate without noise;

08

This packaging equipment for sale is often linked with the high efficient heat shrinking machine.
