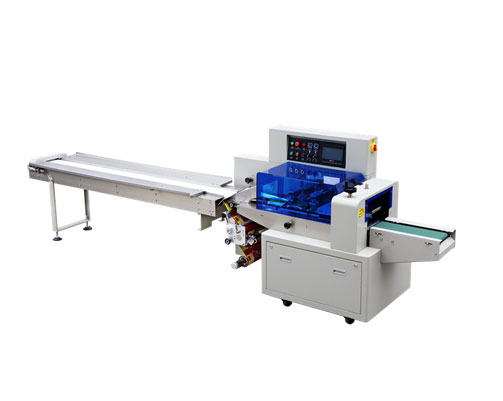

Daily Necessities Hffs Pillow Packing Machine 450X

 Daily necessities include a dishwashing block, sponge, cleaning cloth, steel wire ball, soap, towel, razor, comb, and other daily necessities. We can also customize the packaging machine suitable for you according to the materials provided by users.

GUONUOPACK

Daily Necessities Hffs Pillow Packing Machine 450X Technical Parameters


Machine ModelGN-ZB-450X
Film WidthMax 440mm
Bag Length120-450mm
Bag Width50-200mm
Product HeightMax 80mm
Film Roll DiameterMax 320mm
Packing Speed40-100 bpm
Power Supply220Vac  56/60Hz  2.8KW
Machine DimensionL4950 × W845 × H1400mm
Gross Weight650Kg
Remarks: The packaging film can be connected under the normal working state of the machine, saving time and high efficiency


Video of Daily Necessities Hffs Pillow Packing Machine 450X

The flow wrapping machine is widely used in various industries such as medicine, beverages, tobacco, daily chemicals, automobiles, cables, cosmetics, electronics and so on.




Daily Necessities Hffs Pillow Packing Machine 450X Main Parts Configuration

Main Parts Configuration  (In case of replacement, the same grade shall prevail)
No.ComponentsBrand
1PLCPANASONIC JAPAN
2InverterPANASONIC JAPAN / SHIHLIN TAIWAN
3Touch ScreenXINJIE/MCGS CHINA
4Temperature ControllerALSET CHINA
5PhotocellALSET CHINA
6EncoderRONGDE CHINA
7Two Position SwitchGLELE CHINA
8Proximity SwitchENVK TAIWAN
9PowerMINGWEI TAIWAN
10Solid State RelaySCHNEIDER GERMANY
11Intermediate RelayOMRON JAPAN


Features of Daily Necessities Hffs Pillow Packing Machine 450X

01

The length of the extended feed conveyor can be customized according to the customer's products

02

Double drive longitudinal seal and advanced longitudinal seal heating technology are adopted, with low longitudinal seal temperature, good seal, flat and beautiful grain

03

Flexible forming box.

04

The cantilever structure can reduce dirt and dust accumulation and facilitate cleaning and sanitary cleaning. It does not affect the maintenance of mechanical and electrical components.

05

Left to Right operating direction.

06

With reel automatic centering fastening mechanism and reel braking system top frame.

07

Three rollers are used for film pulling and transverse sealing

08

The user can set the packaging parameters of a variety of products in the man-machine interface. When using, the user only needs to select the corresponding data from the memory to carry out the packaging operation.

09

The machine includes PLC, man-machine interface and frequency conversion control, and has the functions of parameter setting, machine status information, fault diagnosis and so on.
