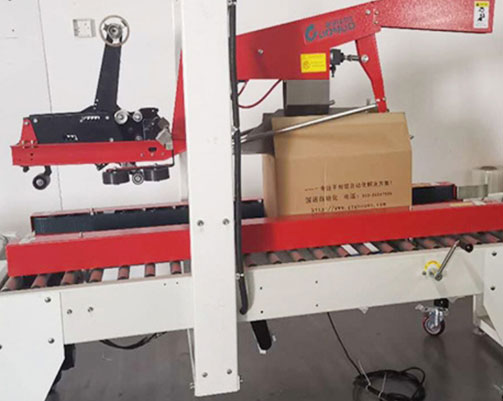

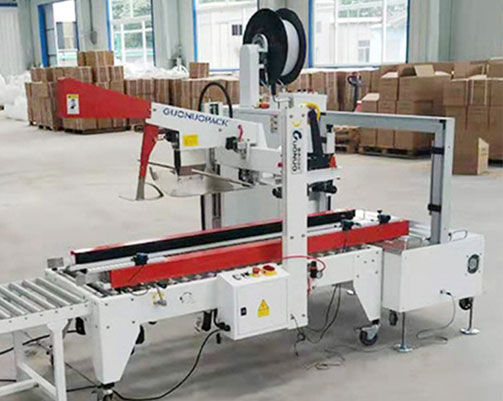

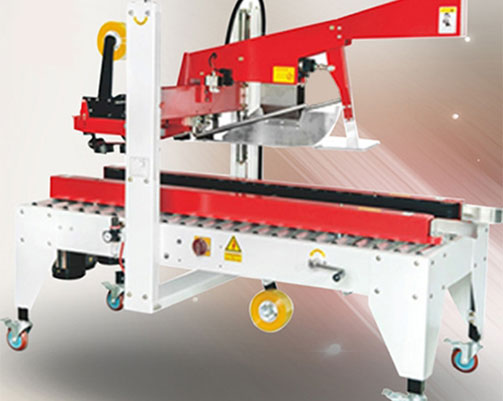

Lined Carton Packing Machine

BOPP tape is used for sealing, and the sealing is smooth. Guonuo's lined carton packing machine has a wide range of applications and can be adjusted manually to adapt to the packaging of boxes of different sizes. You can spot the application of our lined carton packing machines widely in carton covering and tape sealing in food, medicine, toys, tobacco, daily chemical, electronic cigarette, and other industries.


Lined Carton Packing Machine Technical Parameters

Machine ModelGNC-05
Minimum Carton SizeL200×W120×H120mm
Maximum Carton SizeL600×W500×H500mm
Belt Speed20 m/min
Air Pressure0.6 Bar
Suitable TapeW48 / 60 / 75mm
Power Supply220Vac  50/60Hz  0.4KW
Machine DimensionL1700 × W930 × H1510mm
Gross Weight180Kg

Video of Lined Carton Packing Machine


Lined Carton Packing Machine Features


Our lined carton packing machine is fast and convenient to adjust the carton specification. When changing the specification, just manually adjust the width and height, which is simple and clear.


The transmission mode of this auto carton sealing machine is driven by high-power motor and belts on both sides to ensure smooth conveying operation.


Wiring or stand-alone operation can be carried out, and the upper cover and upper and lower surface sealing can be completed at one time.


The adhesive tape has precise and firm structure, smooth operation and long service life.


Our lined carton packing machine series has improved its production efficiency by 50% and saved consumables by 5-10%.
