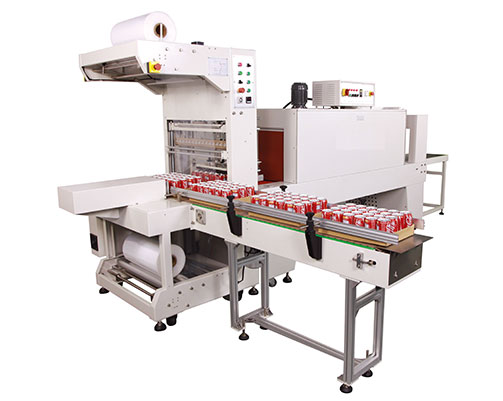

|Machine Model||GNL-6030Z（Sleeve Sealer）||GNS-6040(Shrink Tunnel)|
|Packaging Speed||0-15 bpm||0-15 bpm|
|Power Supply||3Ф 380Vac 50Hz||3Ф 380Vac 50Hz|
|Air Pressure||6kg/cm3||No need|
|Suitable Film||PE(0.035-0.18mm thickness)||PE(0.035-0.19mm thickness)|
|Dimension||L1650 X W920 X H1850mm||L2800 X W900 X H1700mm|
|3||Button switch||SIEMENS GERMAN|
|4||Temperature Controller||AUTONICS SOUTH KOREA|
|7||Solid-state Relay||AOLE TAIWAN|
|8||Motor||LIANGJI (TAIWAN, CHINA)|
Aluminum roller worktable or automatic packaging production line can be selected at the rear end of shrinkage furnace.
When packaging color film, it is necessary to add color code positioning system for accurate positioning.
The sleeve packaging machine can carry out heat shrinkable packaging with or without bottom support in two rows, three rows and four rows according to the production requirements. When changing the packaging form, you only need to modify the parameters on the touch screen.
The worm gear reducer is adopted, and the feeding and film feeding are stable without jitter.
The specially designed sealing knife is adopted, and the sealing line is firm, not cracked and not easy to stick to the knife.
Plastic steel conveyor belt is wear-resistant and has high strength.
The automatic feeding device can be selected according to the bottle shape.
Modular design, changing different bottle shapes can also be completed in an instant.
The feeding conveyor belt can be designed to feed on the left or right according to the needs of the site.
Bmd-800a adopts imported double air motor, so that the hot air in the furnace cavity is evenly distributed, and the effect after shrinkage is more beautiful.

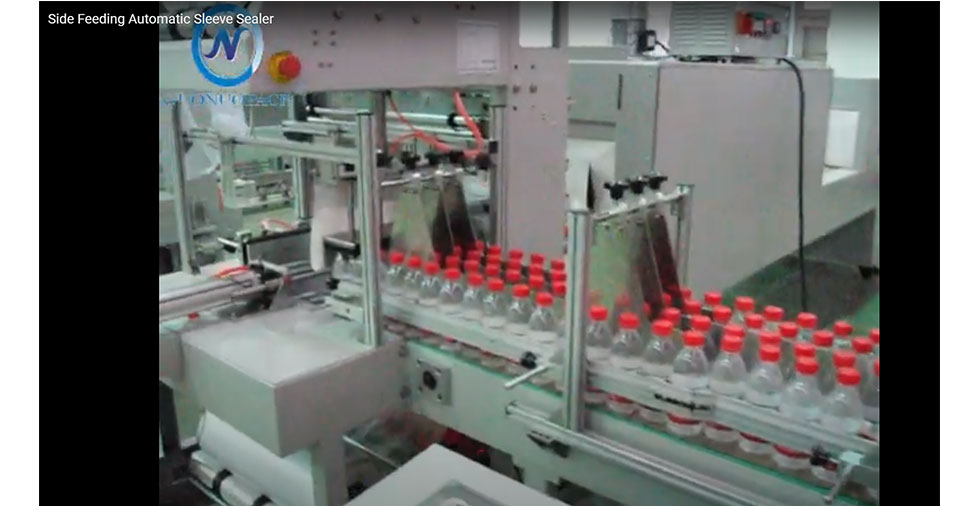

Our side feeding automatic sleeve wrapping machine adopts solid steel rod wrapped with imported silicone hose, and chain rod conveying is durable. Conveyor chains of different materials can also be used according to the of different products.
The frequency converter controls the transmission speed and stepless speed regulation.
The super large air volume cooling system can quickly cool and shape the product after heat shrinkage.
Adopt "Omron PLC" programmable controller to realize the integration of machinery, electricity and gas.
