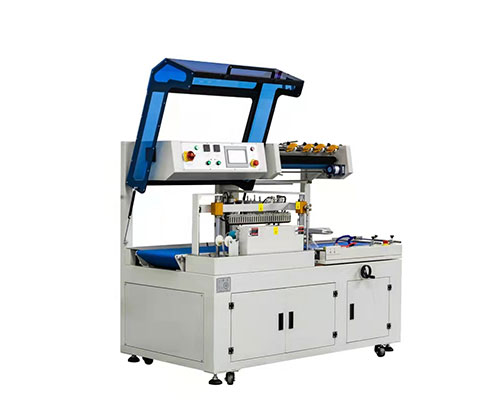

GNL-5545D vertical L bar sealer is a fully automatic shrink packaging machine with a high degree of automation. It can automatically complete the steps of feeding, film covering, sealing and cutting, shrinkage and so on. The height of the longitudinal knife can be adjusted according to the height of the material. The output of this vertical sealing machine series can reach 35 pieces per minute, supporting POF film, PE film, etc. The surface effect after sealing and cutting is beautiful, and the position of sealing and cutting line is adjustable.
| Machine Model | GNL-5545D（Vertical L Sealer） |
| Packaging Size | L＋H＜500mm W＋H＜400mm H＜150mm |
| Packaging Speed | 0-40 bpm（according to product size） |
| Height of Table | 820mm±50mm |
| Suitable Film | POF/PE Film |
| Power Supply | 3Ф220V/380V 50/60Hz |
| Power | 3KW |
| Max Current | 10A |
| Air Pressure | 6kg/cm3 |
| Net Weight | 400kg |
| Dimension | L1850 X W1400 X H1300mm |
| No. | Name | Qty | Brand |
| 1 | PLC | 1 | OMRON, JAPAN |
| 2 | Touch Screen | 1 | MCGS |
| 3 | Circuit Breaker | 10 | SCHNEIDER, FRANCE |
| 4 | Temperature Controller | 3 | OMRON, JAPAN |
| 5 | Ac Contactor | 2 | SCHNEIDER，FRANCE |
| 6 | Material Induction Switch | 4 | BONNER, USA |
| 7 | Motor | 5 | Maili |
| 8 | Solid-state Relay | 3 | OMRON, JAPAN |
| 9 | Air Cylinder | 1 | SHAKO（TAIWAN, CHINA） |
| 10 | Cylinder Solenoid Valve | 1 | SHAKO（TAIWAN, CHINA） |
| 11 | Air Filter | 1 | SHAKO（ TAIWAN, CHINA ） |
| 12 | Proximity Switch | 4 | SICK, GERMAN |
| 13 | Conveyor Belt | 3 | SIGLIN,GERMEN |
| 14 | Power Switch | 1 | TIANYI,CHINA |
PLC is adopted to realize the machine Electricity Gas integration, convenient adjustment;
The automatic/manual mode of this vertical continuous sealing machine can be switched at any time;
Photoelectric switch automatically detects that the products are in place;
The cutter can be automatically moved and the upper and lower cutting seals can be switched;
It adopts the specially designed v-piece sealing knife. The sealing line is firm and does not split, and the external part of the knife body is plated with high temperature resistant Teflon, without mucous membrane, sticking to the knife edge and peculiar smell;
The sealing blade itself is also equipped with automatic protection function which effectively prevent from accidental cutting;
The limit switch controls the film feeding, which greatly reduces the loss of the film;
The film feeding device is driven by the synchronous belt, and the operation is more stable and accurate without noise;
The entire machine realizes unmanned operation with the production line connecting.
