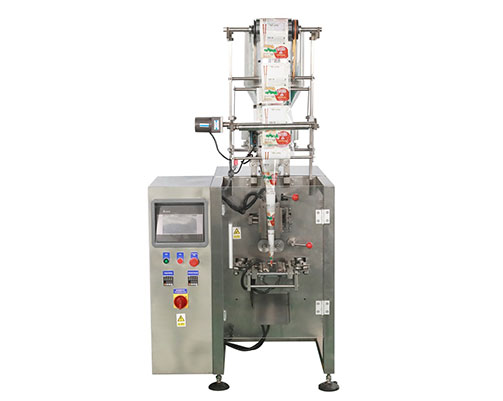

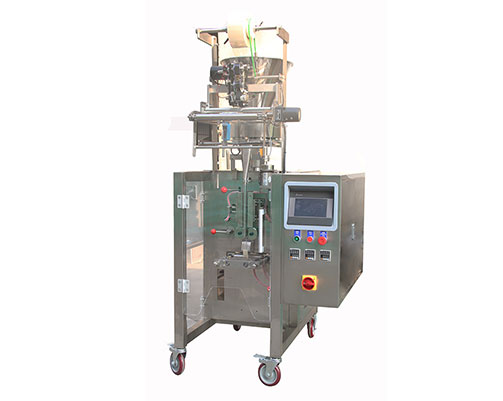

Vertical Granular Packing Machine

An automatic granule vertical packing machine for particulate matter is a kind of VFFS series packing machine, which mainly aims at the packaging of those loose, non-sticky, and fine granular products. Having the advantages of convenient operation, compact design, and a small floor area, the vertical granular packing machine is widely used in the food, medicine, and chemical industries. Such as soup, granule, dryer, monosodium glutamate, sugar, cereal, seeds, melon seeds, sesame, etc.

GUONUOPACK

Granule Vertical Packing Machine Technical Parameters



Machine ModelGN-LB-K300
Seal TypeFlat / Teeth / Round etc.
Volume Measure TypeScrew Motor / Cup
Power Supply220Vac    50Hz
Power2.5KW
Bag Size30-150mm(Width), 30-165mm(Length)
Machine DimensionL1100 × W850 × H1800mm



Vertical Granular Packing Machine Video



Vertical Granular Packing Machine Advantages

1. The granule vertical packing machine is easy to operate, The operator doesn't need a long time of training.

2. The granule vertical packing machine packaging speed is higher and more stable for applying the servo motor.

3. The metering system has high packing accuracy which can lessen the damage to materials. Granule vertical packing machine is suitable for valuable granular materials, such as potato chips, valuable nuts, dried seafood, pet food, etc.

4. The granule vertical packing machine can make the various bag shape such as pillow bags, gusset bags, pouching whole, link bags, quad seal bags, etc.

5. The granule vertical packing machine is easy to adjust the packaging weight only by setting different parameters in the touch screen. The sugar packing machine makes it more quickly and easily for changing the scale of the product.

6. After feeding, the machine automatically seals and cuts, the edge is neat and the effect is good.

7. Cooperate with the dividing machine to connect the data line, automatic feeding without manual operation, feeding fast efficient and intelligent.

8. The bag length is designed according to the size of the material and the application of the outer package. The machine will cut the bag according to the set length, which is accurate and practical.



How Does Granule Vertical Packing Machine Work

1. Set all the appropiate parameters such as the weight of materials, the sealing parameters on the PLC touch screen.

2. Put the granular materials into the hopper and survey the them to the metering system by filling machine.

3. The packaging film is conveyed through the machine by pulling belts. It is very stable and fast by using the servo motor.

4. After the material enters the bag, sophisticated sealing structure operates in order to reach reliable sealing result.

5. Transport finished pouch bag out through conveyor smoothly.



Granular Packing Machine Applications





Vertical Granular Packing Machine Electrical Configuration

No.NameBrand
1PLCXINJIE CHINA
2Touch ScreenXINJIE CHINA
3Proximity SwitchYANG MING TAIWAN
4MotorTAIBAN TAIWAN
5ThermocoupleSHANGHAI
6InverterXINJIE CHINA
7Solid-state RelayYANG MING TAIWAN
8MotorSUOENG CHINA
9ContactorSCHNEIDER,FRANCE
10DC Power SupplyMINGWEI TAIWAN


Granule Vertical Packing Machine Features

01

The granule vertical packing machine is controlled by PLC, touch screen and frequency converter, with reliable operation and convenient operation;

02

The bag length and cursor are controlled accurately;

03

By changing the volumetric cup to meet the packaging of different measurements, the packaging of products is both reliable and practical;

04

The vertical form fill and seal machine has the advantages of being fast, accurate, economic, and useful;

05

By changing the heat sealing structure, the packaging bag can realize three side sealing, four side sealing or back sealing.

06

Bag forming , measusing ,filling ,sealing ,cutting ,counting , printing are all can be finished automatically

07

The temperature is under independent PID control ,more suitable for different packing material

Either under set length control or photo-electronic color tracing, the bag length and cut can set in one step. Save time and film


08

The driving system is simple and reliable, and maintenance is easy

09

Level sensor on the hopper, can control the feeding machine work automatic

10

Whole machine made of SS304 structure, easy cleaning
